Brand: TILO
Made in China
Configuration: D65, TL84, F, UV,CWF,TL83 six light sources
Weight: 60Kg
Dimensions(WxDxH): Outline: 1310x600x800mm Interior: 1280x590x590mm
Made in China
Configuration: D65, TL84, F, UV,CWF,TL83 six light sources
Weight: 60Kg
Dimensions(WxDxH): Outline: 1310x600x800mm Interior: 1280x590x590mm

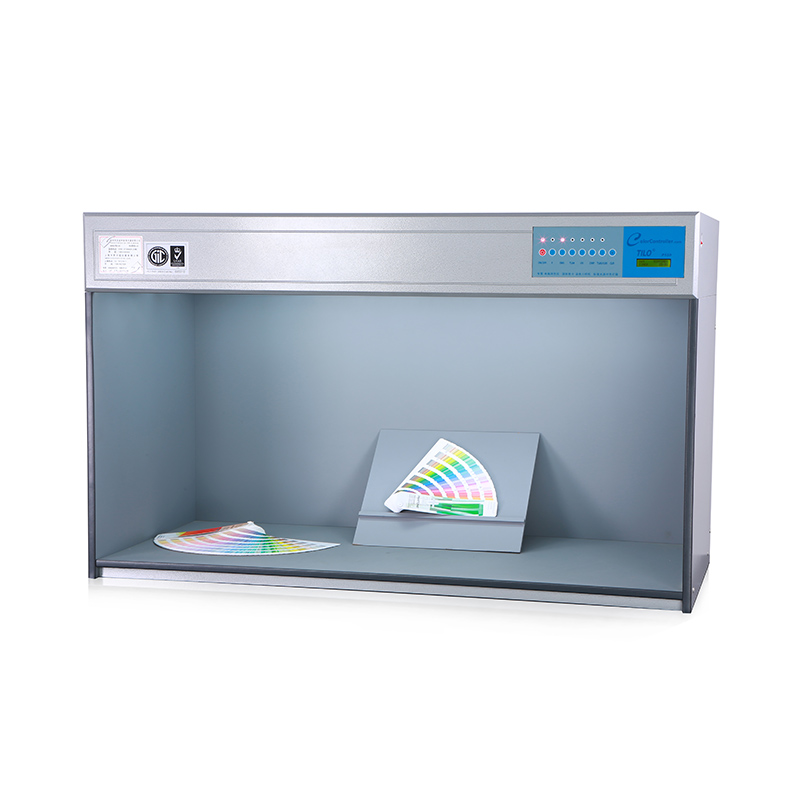

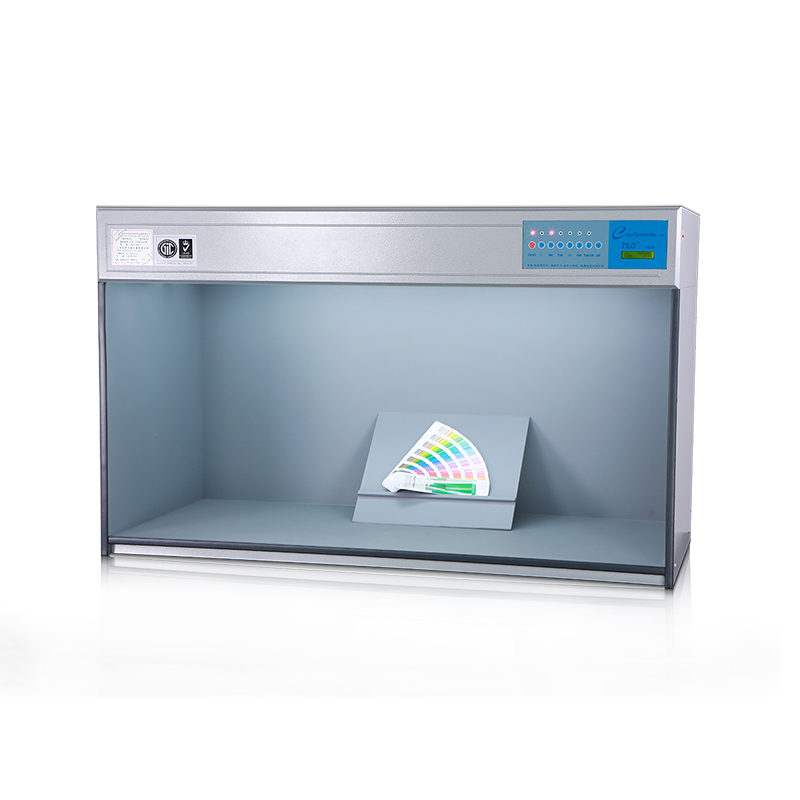

TILO P120 color light booth is equipped with 6 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.
TILO P120 color light booth can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
1. Display the usage time, name and number of switches for each light source.
2. Automatic switching of light source with metamerism.
3. No warm-up, no flashing, fast and reliable evaluation of colors.
4. Low energy consumption, no heat dissipation, high luminous efficiency.
5. Configure a more complete standard light source for English and American standards.
6. The name of the light source can be changed, and it is more convenient to increase the light source.
7. Oversize volume and internal frame for easy observation of large items.
Features:
1. Display the usage time, name and number of switches for each light source.
2. Automatic switching of light source with metamerism.
3. No warm-up, no flashing, fast and reliable evaluation of colors.
4. Low energy consumption, no heat dissipation, high luminous efficiency.
5. Configure a more complete standard light source for English and American standards.
6. The name of the light source can be changed, and it is more convenient to increase the light source.
7. Oversize volume and internal frame for easy observation of large items.
Specifications:
| Order No. | Name | Model | D65 | TL84 | F | UV | CWF | TL83 | Voltage |
| 10118 | Standard light source booth | P120 six light source(220V) | 2pcs | 2pcs | 6pcs | 1pcs | 2pcs | 2pcs | 220V/50Hz |
| 10818 | Standard light source booth | P60(6) six light source(115V) | 2pcs | 2pcs | 6pcs | 1pcs | 2pcs | 2pcs | 115V/60Hz |

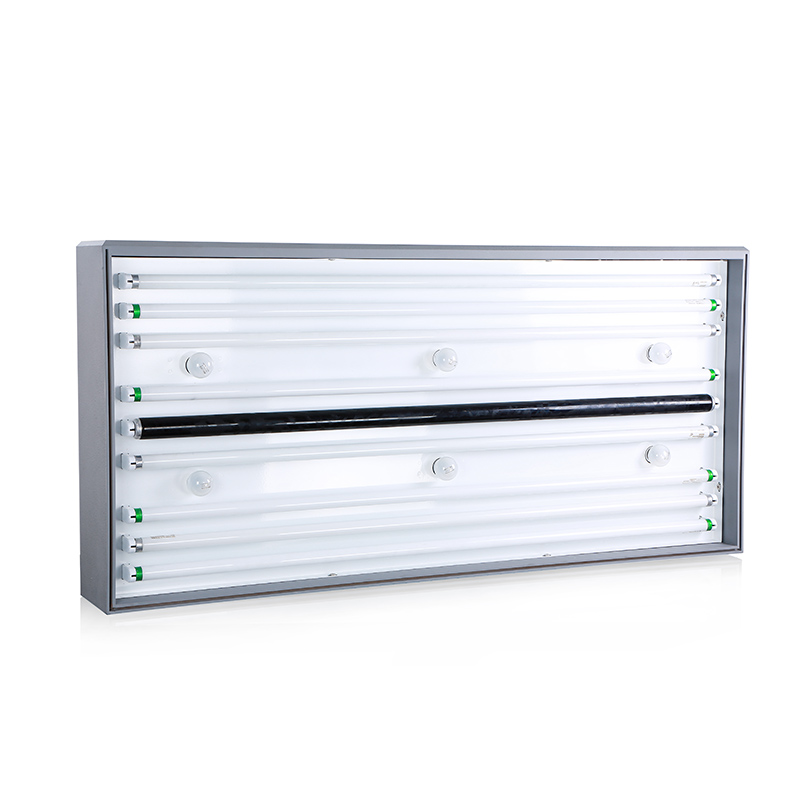

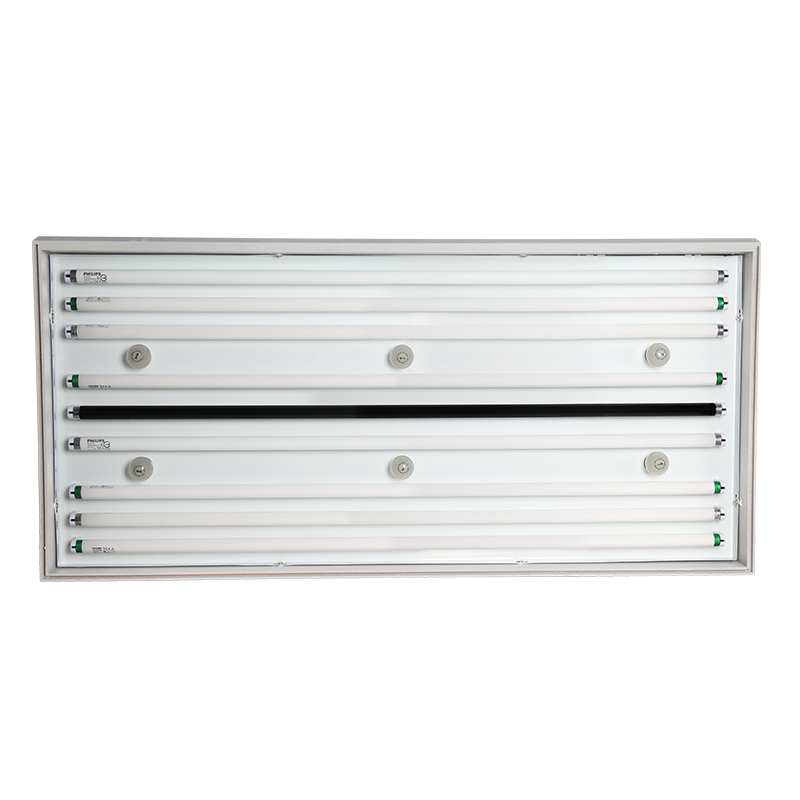

Light Sources:
| Light Source | Color viewing booths application | Color temperature(k) | Power(W) |
| D65 | International standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 |
| CWF | (Cool White Fluorescent) American Standard | 4150 | 18 |
| F/A | "Sun-setting Light Yellow" incandescent light source (imitation of sunset) | 2700 | 40 |
| UV | Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | Wave length:365nm | 20 |
| TL83 | Warm White Fluorescent American Standard | 3000 | 18 |
